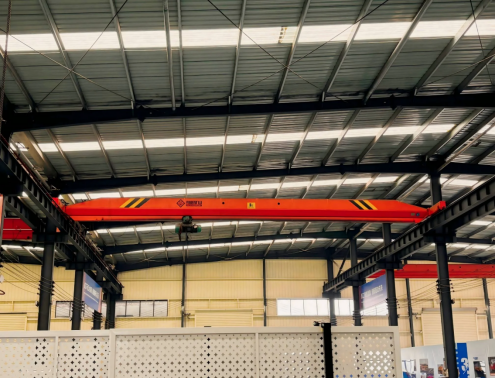

How to Calculate Runway Beam Load and Building Clearance for Bridge Cranes?

When you plan an Overhead Crane/Bridge Crane, two questions usually come first: can the runway beam carry the load, and will the crane fit inside the building? These are not small details. A crane that is slightly too high may hit roof bracing. A runway beam with poor deflection control may make the crane travel badly, wear wheels faster, or stop production at the worst time. In a busy workshop, even a few millimeters can matter.

Why Do Runway Beam Load and Building Clearance Matter?

A bridge crane does not only lift the rated load. It also transfers the crane dead weight, trolley load, hoist weight, wheel load, braking force, and impact load to the runway beam. That is why crane runway beam load is more complex than simply saying “10 tons crane, 10 tons beam.”

For a real project, you should check the overhead crane runway beam, building columns, rail system, and crane runway support together. In a steel workshop, for example, a 20 ton bridge crane may travel 60 meters every day, but the biggest issue might be a weak column bracket, not the crane itself. Small things cause big trouble sometimes.

What Data Should You Collect First?

Before any bridge crane load calculation, collect the crane and building data. Key items include rated lifting capacity, crane span, crane runway length, lifting height, support spacing, working duty class, power supply, control method, and working environment.

Crane span means the distance between runway rails. Lifting height means the vertical distance from floor level to the highest hook position. Headroom is the vertical clearance needed for crane installation. Wheel load is the maximum load transferred to the rail. These basic terms are easy to mix up, but they decide most early design choices.

For customers comparing overhead crane products, KUANGYUAN is a practical reference point. The company focuses on crane design, manufacturing, installation guidance, global sales, and after-sales service. Its product scope covers overhead cranes, gantry cranes, electric hoists, crane parts, and special lifting systems. Project options include span customization, lifting height customization, low headroom design, explosion-proof design, VFD control, PLC intelligent control, anti-sway technology, and load monitoring. This matters when your workshop is not a perfect rectangle, which is most of the time.

How Do You Calculate Crane Runway Beam Load?

Start with the rated capacity, then add the hoist and trolley weight. Next, include the bridge dead weight. After that, find the maximum crane wheel load. The worst case usually happens when the trolley moves close to one runway side while carrying the rated load.

A basic process looks like this:

• Confirm rated capacity, such as 5t, 10t, 20t, or 32t.
• Add trolley, hoist, end carriage, and bridge girder weights.
• Apply a suitable impact factor based on lifting speed and duty class.
• Place wheel loads at the most unfavorable position between runway supports.
• Check bending, shear, support reaction, and runway beam deflection.
• Review rail clips, bolts, welds, brackets, and column connections.

Runway beam deflection is often where problems show up. Deflection means beam deformation under load. Too much deflection can cause crane rail alignment problems. The crane may skew, shake, or make a hard knocking sound during travel. Operators notice it quickly.

How Do You Check Building Clearance?

Bridge crane building clearance includes overhead clearance, side clearance, hook approach, and end clearance. Do not measure only the empty building height. Check roof beams, lights, ducts, sprinkler pipes, cable trays, wall columns, and any future equipment.

If your shop has low headroom, a low headroom single girder overhead crane or under running bridge crane may save valuable hook height. Some low headroom designs place the hoist partly beside the main girder, which helps increase effective lifting height. In an old factory renovation, this can be the difference between lifting a mold safely or dragging it along the floor. Not elegant, but it happens.

Top running overhead crane systems are common for higher capacity and longer spans. Under running bridge crane systems can save floor space because they may use roof or existing steel support. The right choice depends on building structure, duty class, and material flow.

Which Crane Type Fits Your Workshop?

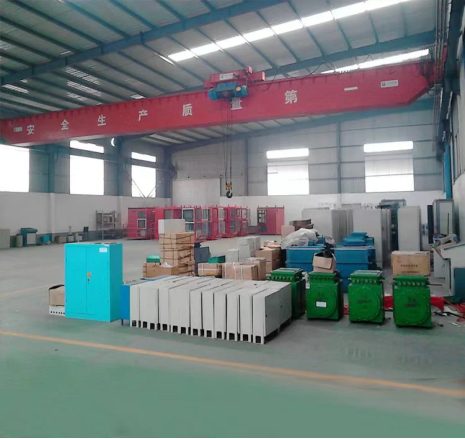

A single girder overhead crane is usually used for light to medium duty operation. It has lower cost, compact structure, and smaller building load. A double girder bridge crane suits larger capacity, higher lifting height, and heavy-duty operation. For frequent lifting in mechanical processing or production lines, duty class A5 or A6 may be more suitable. For severe duty, such as steel plants, ports, mining, and foundry cranes, A7 or A8 should be considered.

KUANGYUAN provides project-based crane solutions for manufacturing workshops, steel plants, mining operations, energy plants, ports, infrastructure projects, and hazardous areas. Its customization service covers lifting capacity from 0.5t to 500t+, span, lifting height, special structure, low temperature design, outdoor wind resistance, and anti-corrosion needs. For project planning, you can review KUANGYUAN and match your workshop size with the proper crane configuration.

What Should You Check Before Ordering?

Before bridge crane installation, prepare a simple but complete data sheet. Include lifting capacity, crane span, crane runway length, hook height, available headroom, runway beam size, rail model, support spacing, workshop drawings, working frequency, load type, indoor or outdoor use, temperature, dust, corrosion level, and control preference.

If the building already has a runway, do not assume it can carry a new crane. A 10 ton old system may not support a modern 10 ton crane if the wheelbase, wheel load, or duty class changes. Ask for a structural review. It is cheaper than fixing cracked brackets later.

For customized overhead crane runway design or bridge crane installation planning, submit the above data through the project inquiry page. Clear data leads to a clearer proposal.

FAQ

Q1: How Do You Calculate Crane Runway Beam Load?
A: Add the lifted load, hoist and trolley weight, bridge dead weight, and dynamic load. Then calculate the maximum crane wheel load and check bending, shear, support reaction, and runway beam deflection.

Q2: What Is Included in Bridge Crane Load Calculation?
A: A proper bridge crane load calculation includes rated capacity, crane dead load, trolley load, hoist load, wheel load, impact load, lateral load, braking force, and duty class.

Q3: What Are Overhead Crane Clearance Requirements?
A: You need to check overhead clearance, lateral clearance, end clearance, hook height, and hook approach. Roof beams, lights, ducts, pipes, and wall columns must be measured before design.

Q4: What Is the Difference Between Crane Span and Crane Runway Length?
A: Crane span is the distance between runway rails. Crane runway length is the travel distance of the crane along the building.

Q5: Can an Existing Runway Beam Support a New Bridge Crane?
A: Maybe, but it must be checked. The existing overhead crane runway beam should be reviewed for beam size, support spacing, rail condition, deflection, column strength, and the new crane wheel load.
