Bridge Girder Launcher

  • The capacity: 60-200ton
  • The span: 20-50m
  • Control Mode: Pendant, Remote Control and Cabin Control.
Product Description

Bridge Girder Erecting Launcher Crane applies to highway, railway bridges to the construction site of bridge construction, its main function is to mention prefabricated good beam slice and delivered on prefabricated good piers.it and general meaning cranes have very big different, high safety requirements.

Bridge Girder Erecting Launcher Crane mainly consisted with main beam, cantilever, under guide beam, front and rear legs, auxiliary outrigger, hanging beam crane, cantilever crane and elecrto-hydraulic system. Applies to three different span single-span simply supported beam erection, with high operating efficiency.

Bridge Girder Erecting Launcher Crane is widely used in highway and railway construction This Machine is used for erecting concrete box girders for high speed (250km, 350km) passenger railway lines. This machine is suitable for equal span girders or different span girders which can be 20m, 24m and 32m, 50m. The rear part has two supports. One of the supports is "C" shape column with rotary and foldabletechnology. The "C" shape column technology saved the traverse space during traveling and which enables to travel through tunnels with the girder transfer vehicle.

Bridge Girder Erecting Launcher Crane applies to highway, railway bridges to the construction site of bridge construction, its main function is to mention prefabricated good beam slice and delivered on prefabricated good piers.it and general meaning cranes have very big different, high safety requirements.

Bridge Girder Erecting Launcher Crane is widely used in highway and railway construction This Machine is used for erecting concrete box girders for high speed (250km, 350km) passenger railway lines. This machine is suitable for equal span girders or different span girders which can be 20m, 24m and 32m, 50m. The rear part has two supports. One of the supports is "C" shape column with rotary and foldabletechnology. The "C" shape column technology saved the traverse space during traveling and which enables to travel through tunnels with the girder transfer vehicle.

Benefits
Best Quality
During the drilling equipment production, we strictly follow the regulations of the ISO9001: 2008 quality control system.
Fast Delivery
Strong factory, strong productivity, able to deliver on time, so you have no worries.
Global Service
We always provide people a complete solution focused of any business.
Parameter

Technical parameters of bridge girder Launcher

MCJH50/200MCJH40/160MCJH40/160MCJH35/100MCJH30/100
Lifting capacity200t160t120t100t100t
Applicable span≤55m≤50m≤40m≤35m≤30m
Applicable skew bridge angle0-4500-4500-4500-4500-450
Trolley lifting speed0.8m/min0.8m/min0.8m/min1.27m/min0.8m/min
Rolley longitudinal moving speed 4.25m/min4.25m/min4.25m/min4.25m/min4.25m/min
Cart longitudinal moving speed   4.25m/min4.25m/min4.25m/min4.25m/min4.25m/min
Cart transverse moving speed2.45m/min2.45m/min2.45m/min2.45m/min2.45m/min
Transportation capacity of bridge transport vehicle100t X280t X260t X250t X250t X2
Heavy load speed of bridge transport vehicle8.5m/min8.5m/min8.5m/min8.5m/min8.5m/min
Bridge transport vehicle return speed17m/min17m/min17m/min17m/min17m/min

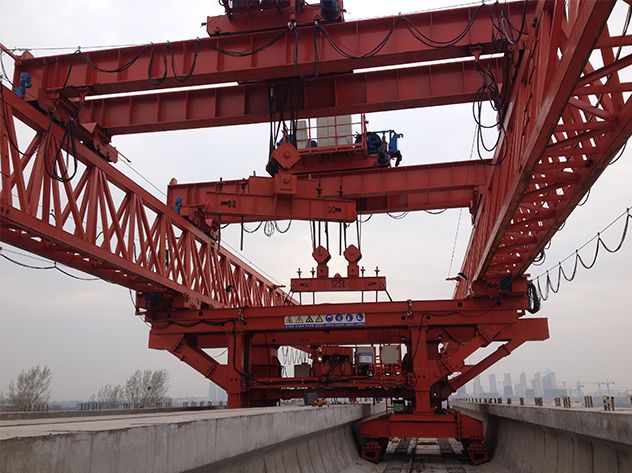

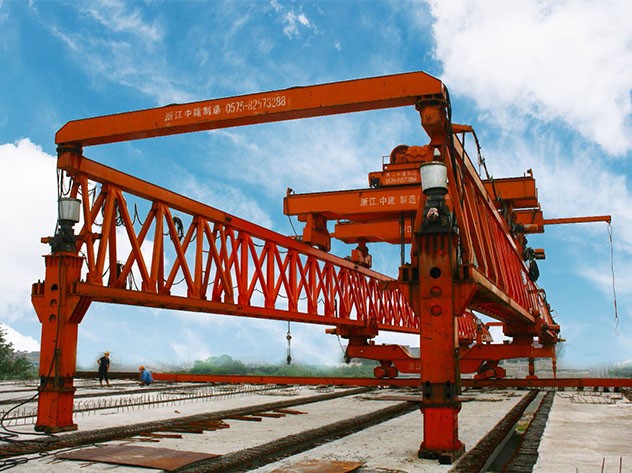

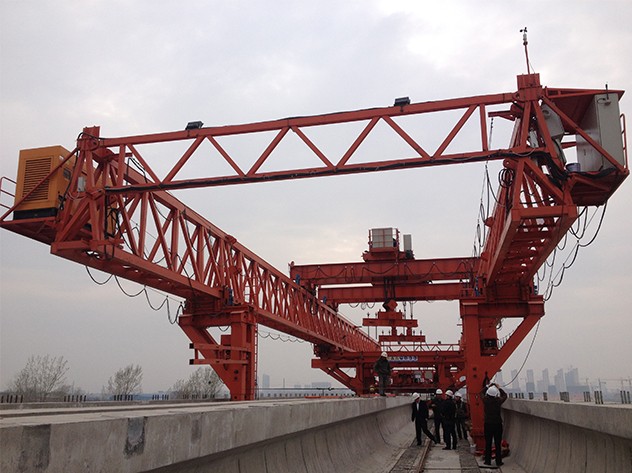

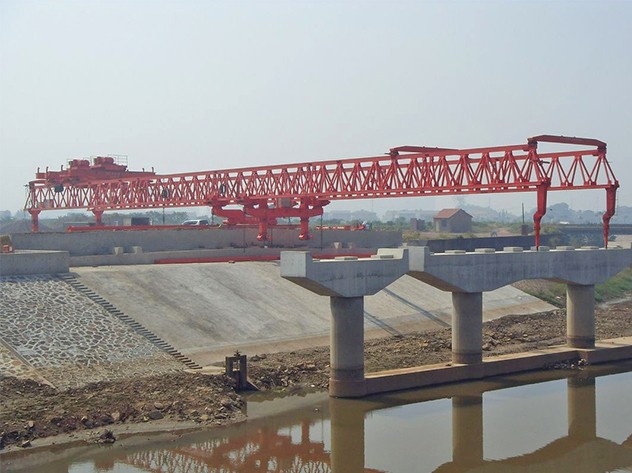

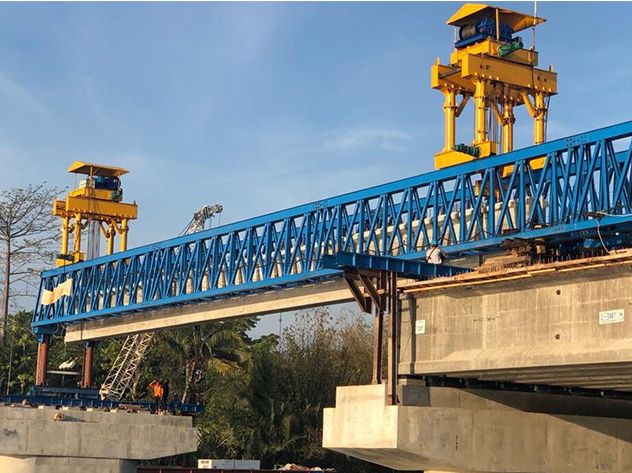

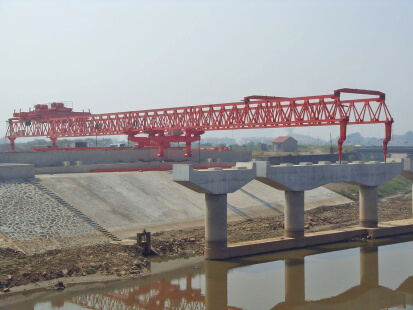

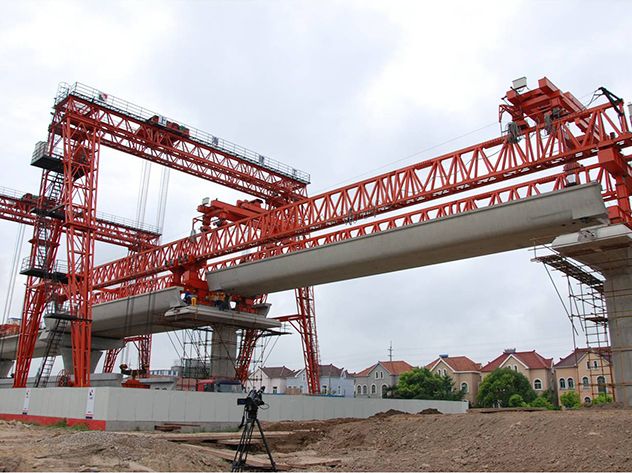

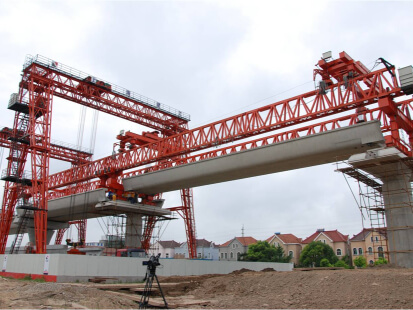

Customer Site
Packing and Shipping

We strictly manage packaging specifications and transportation requirements,Wooden pallets with plastic filmor according to your request.
