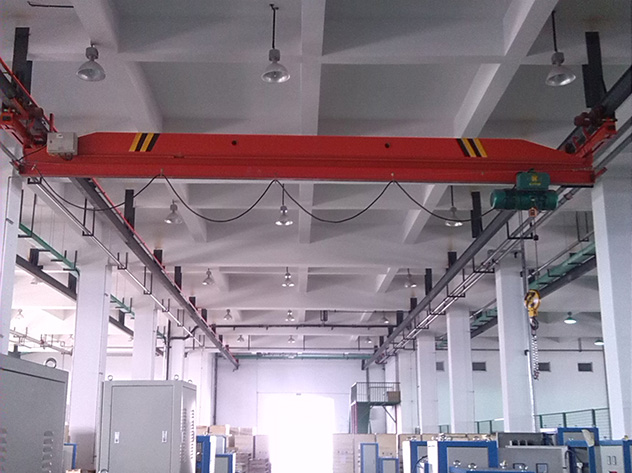

Single girder electric hoist suspension crane

  • The capacity:0.5-5ton
  • The span : 3-16m
  • The working grade : A3-A5
  • The working temperature:-25℃ to 40℃
Product Description

LX single girder suspension overhead crane often works together with CD1 or MD1 electric hoist, which is a kind of track lifting device, and it is often used in the assembly workshop, warehouse, caves and other places. Single girder suspension crane often has lower lifting capacity and height, which is especially suitable for small construction works. The main girder steel has high hardness, which has strong impact resistance and high quality.

The electric hoist of single girder suspension overhead crane moves along the main beam horizontally and vertically, and the operation is pretty smooth, reliable and safe. The working span is often ranges from 3 to 16 meters, and it belongs intermediate working class, which can be operated by wire and wireless control. Certain cantilevers can be added with the condition of workshops or personal demand.suspension overhead crane is prohibited to use the equipment at combustible, explosive or corrosive environment.

Best Quality
During the drilling equipment production, we strictly follow the regulations of the ISO9001: 2008 quality control system.
Fast Delivery
Strong factory, strong productivity, able to deliver on time, so you have no worries.
Global Service
We always provide people a complete solution focused of any business.

Technical parameters of single girder electric hoist suspension crane

Mechanism ItemUnitResult
Lifting capacityton0.5-5ton
Working grade A3-A5
 Working environment temperature°C-25~40
Travelling mechanismworking speedm/min20    30
motortype ZDY 12-4
rotational speedm/min1380
Lifting mechanismlifting speedm/min8    8/0.8
lifting heightH(m)6  9  12  18  24  30
travelling speedm/min20    30
working systemA3-A5
power sourcethree-phase 380V 50HZ
Customer Site
Packing and Shipping

We strictly manage packaging specifications and transportation requirements,Wooden pallets with plastic filmor according to your request.
