Product Description
Our LD single girder electric hoist cranes, manufactured by Henan Mine Crane in China, deliver 1–30 tonne lifting capacity with robust build to handle extreme conditions—whether -25°C to 40°C temperature, heavy dust, or high-frequency operation. Designed and tested to ISO, FEM, DIN international standards, every unit ensures reliable performance, high rigidity, and safe operation in industrial workshops, warehouses, and production lines. Backed by 20+ years of crane manufacturing experience, a 1.62 million m² production base, and full in-house R&D, fabrication, and after-sales support. Supported by comprehensive engineering consultation, custom design, installation, and maintenance services, we provide end-to-end solutions for large-scale projects worldwide. Trust our expertise for high-capacity lifting equipment backed by proven project execution capability.
Parameter
Technical parameters of single girder cranes
| Mechanism | Item | Unit | Result | ||
| Item | |||||
| Lifting capacity | ton | 1-30ton | |||
| Working grade | A3-A5 | ||||
| Span | m | 7.5-31.5m | |||
| Working environment temperature | °C | -25~40 | |||
| Travelling mechanism | working speed | m/min | 20-75 | ||
| motor | type | ZDY1 21-4 | ZDR 100-4 | ||
| power | kw | 2*0.8 | 2*1.5 | ||
| rotational speed | m/min | 1380 | |||
| Lifting mechanism | lifting speed | m/min | 8/0.8(7/0.7) 3.5(3.5/0.35) 8(7) | ||
| lifting height | H(m) | 6 9 12 18 24 30 | |||
| travelling speed | m/min | 20 30 | |||
| working system | A3-A5 | ||||
| power source | three-phase 380V 50HZ | ||||
Different Types of Single Girder Overhead Crane

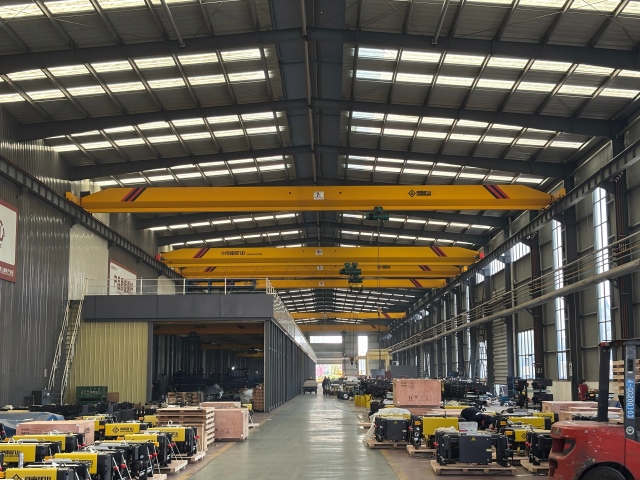

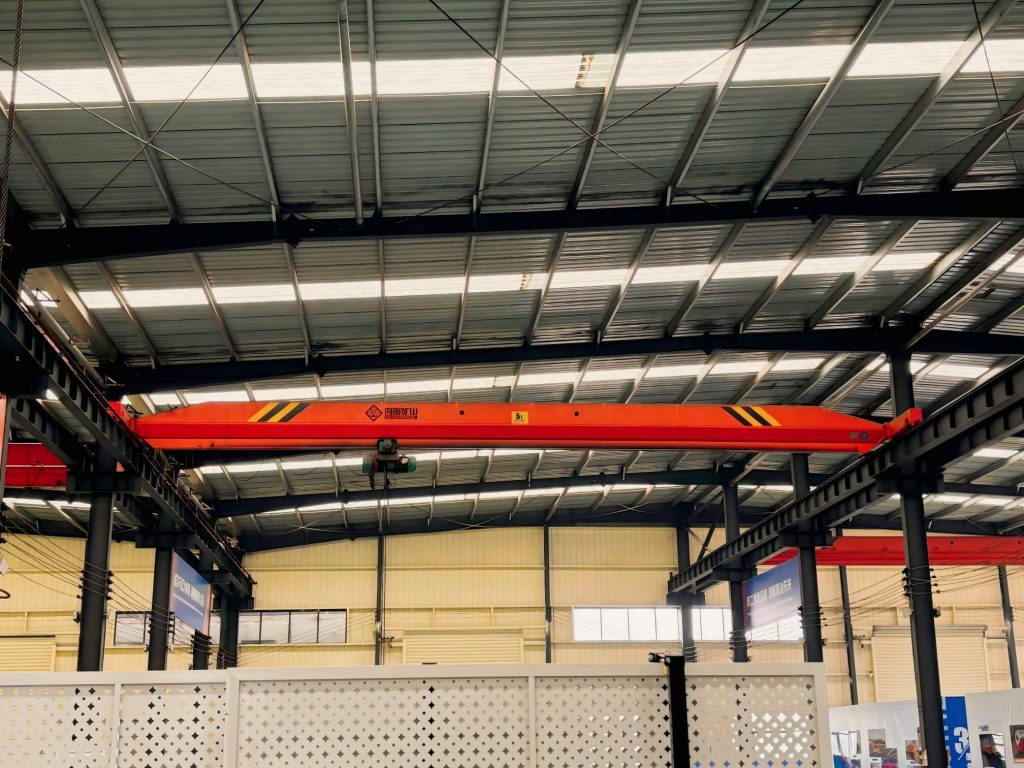

Single Girder Overhead Crane
The LD single girder overhead crane is a cost-effective lifting solution for light and medium-duty applications.
Capacity: 1–20 ton
Span: 7.5–31.5m
CD/MD electric hoist
Stable and reliable operation

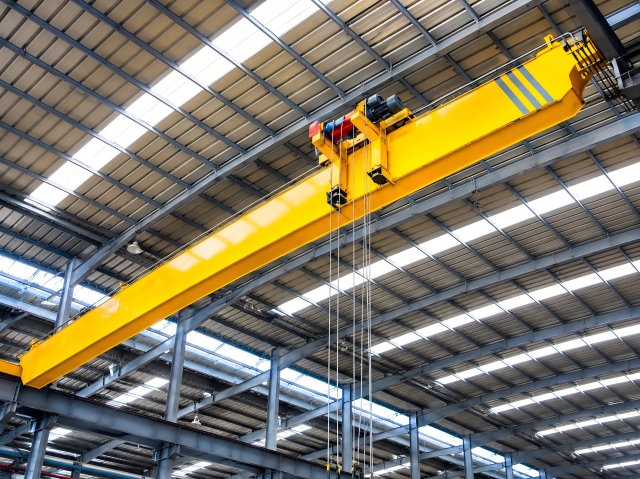

Low Headroom Overhead Crane
The LDP overhead crane is designed for workshops with limited ceiling height to maximize lifting space.
Low headroom design
Higher lifting height
Compact structure
Smooth operation

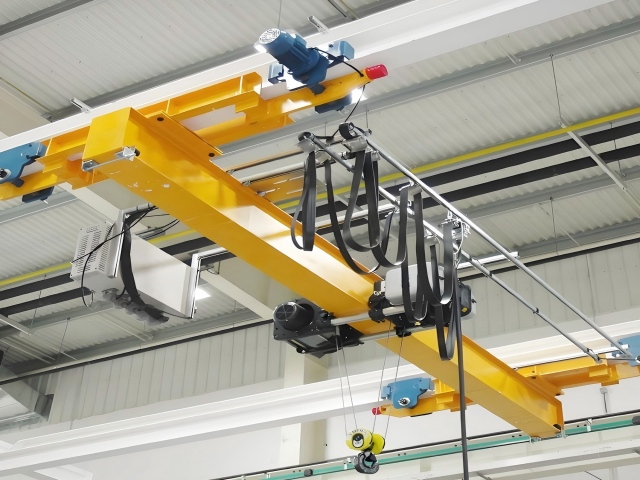

Suspension Single Girder Crane
The LX suspension overhead crane is designed for light-duty material handling and is directly suspended from the workshop roof structure.
Suspension running design
Compact and lightweight structure
Smooth operation
Space-saving solution
Case
Henan Mine Crane has supplied LD single girder overhead cranes for workshops, warehouses, machinery plants, and industrial lifting projects worldwide.

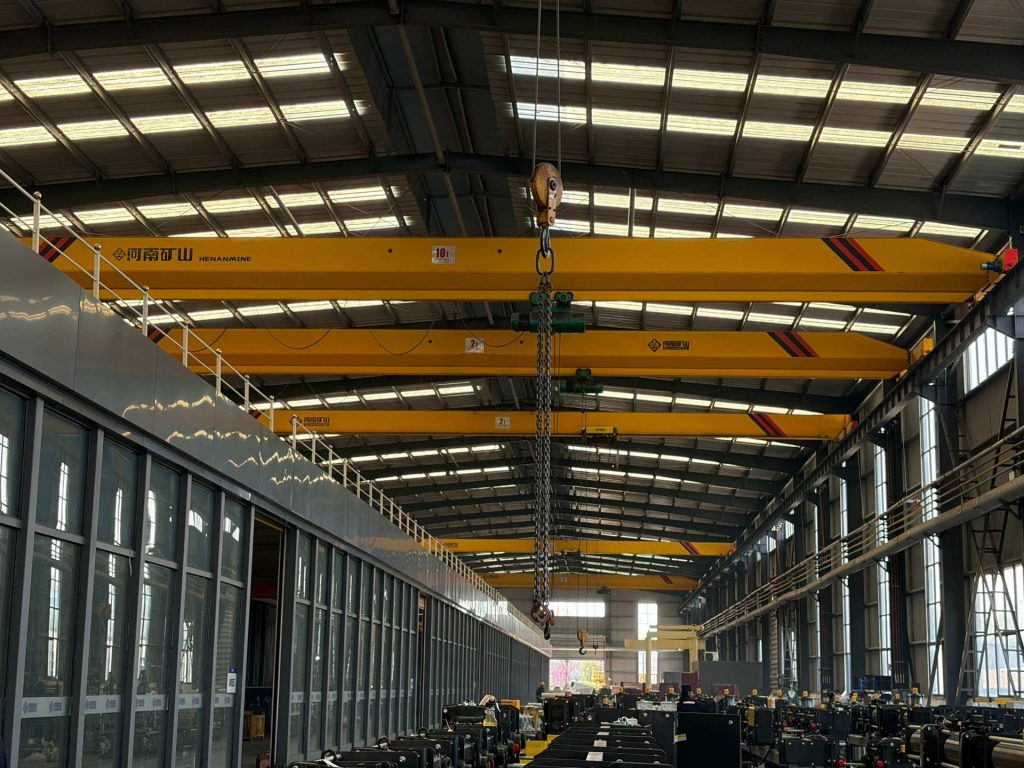

Steel Structure Workshop Project – Indonesia
A 10-ton single girder overhead crane was installed in a steel structure workshop for material handling and equipment lifting. The crane ensures stable operation, improves workflow efficiency, and supports daily production activities.
Machinery Manufacturing Plant – Uzbekistan
Two 5-ton LD single girder overhead cranes were installed in a machinery manufacturing plant for workshop lifting operations. Equipped with CD electric hoists and remote control systems, the cranes provide efficient, safe, and reliable material handling solutions.

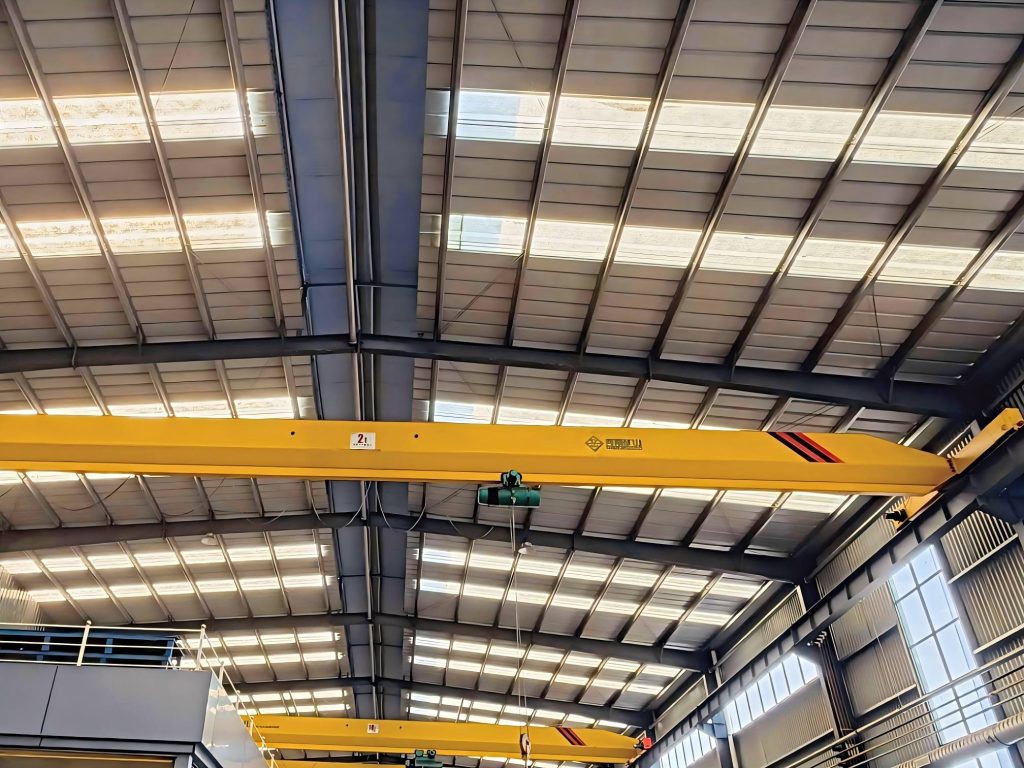

Warehouse Material Handling Project – Philippines
A 2-ton overhead bridge crane was applied in a warehouse in the Philippines for loading and unloading operations. The crane improves material handling efficiency and provides a safe, reliable solution for daily logistics workflow.
Customer Site
We welcome global clients to our factory for inspections and business meetings. Direct visits allow customers to experience our manufacturing strength, quality control system, and professional service.
Packing and Shipping
We strictly manage packaging specifications and transportation requirements to ensure every crane and component is delivered safely.
Small parts and accessories are packed in wooden cases or wooden pallets for strong protection during transportation. Large steel structures are wrapped with plastic film or waterproof materials to prevent moisture, dust, and surface damage.
Electrical components receive additional anti-vibration and moisture-proof protection to ensure reliable performance after delivery.
With 20+ years of export experience, we provide efficient sea, land, and multimodal transportation solutions for global customers.
Customized packaging is available according to your specific requirements.
FAQ
Our prices are subject to change depending on supply and other market factors. We will send you an updated price list after your company contact us for further information.
Yes, we can provide most documentation including Certificates of Analysis / Conformance; Insurance; Origin, and other export documents where required.
For samples, the lead time is about 7 days. For mass production, the lead time is 20-30 days after receiving the deposit payment. The lead times become effective when (1) we have received your deposit, and (2) we have your final approval for your products. If our lead times do not work with your deadline, please go over your requirements with your sale. In all cases we will try to accommodate your needs. In most cases we are able to do so.
It is widely used in steel structure workshops, warehouses, machinery manufacturing plants, maintenance workshops, and material handling applications.
You only need to provide lifting capacity, span, lifting height, workshop size, and working condition. Our engineers will recommend the most suitable crane solution for your project.
Yes. We provide installation drawings, video guidance, online technical support, and overseas engineer service if required.
