Product Description
Europe type double girder overhead crane mainly consists of bridge, trolley travelling mechanism, trolley and electrical appliances, and is divided into 2 working grades of A5 and A6 according to the use frequency.
Europe type double girder overhead crane with dual hook ,The hook bridge crane can be used to lift loads from 5 tons to 350 tons, which is widely used in warehouse, factories and other working sites.
Compared with conventional double girder overhead cranes, European-type cranes typically feature a more compact structural design, optimized mechanical components, reduced overall equipment weight and improved space utilization.
Equipped with advanced lifting mechanisms, variable frequency drives and intelligent control options, these cranes are suitable for applications requiring high positioning accuracy, smooth operation and frequent lifting cycles.
Henan Mine Crane provides customized European double girder overhead crane solutions according to lifting capacity, span, lifting height, working class and workshop conditions.
Parameters
| Mechanism | Item | Unit | Result | |
| Item | ||||
| Lifting capacity | ton | 5-350 | ||
| Lifting height | m | 1-20 | ||
| Span | m | 10.5-31.5 | ||
| Working environment temperature | °C | -25~40 | ||
| Speed | Hoisting | Main | m/min | 0.84-9.5 |
| Aux. | 5.22-12.6 | |||
| crab | 5.8-38.4 | |||
| trolley | 17.7-78 | |||
| Working system | A5-A6 | |||
| Power source | three-Phase A C 50HZ 380V | |||
Key Advantages
Why Choose Our European Double Girder Overhead Crane?
01. Compact Structural Design
Optimized girder and trolley configurations help reduce equipment dimensions and improve available lifting space inside the workshop.
02. High-Efficiency Lifting System
Advanced hoisting mechanisms and optimized transmission systems support efficient lifting and smooth material handling.
03. Precise Speed Control

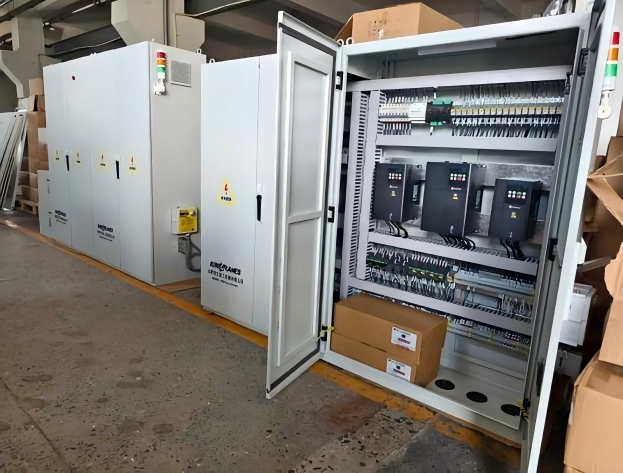

Variable frequency drive options provide smooth acceleration, deceleration and more accurate load positioning.
04. Easy Maintenance
Modular component configurations and accessible maintenance points help simplify inspection and routine servicing.
European Double Girder vs. Conventional Double Girder Crane
| Comparison | European Double Girder | Conventional Double Girder |
| Structural Design | Compact, optimized | Traditional structural design |
| Hoisting Mechanism | European-style trolley | Hoist trolley or open winch |
| Equipment Weight | Often lighter for comparable design conditions | Depends on configuration |
| Lifting Space | Optimized headroom | Depends on hoisting arrangement |
| Speed Control | Commonly equipped with VFD options | Single / dual speed or VFD |
| Maintenance | Modular design options | Depends on component arrangement |
| Initial Investment | Initial Investment | Generally more economical |
European double girder overhead cranes are designed for modern industrial facilities where compact dimensions, precise control and efficient operation are important. Conventional double girder cranes remain a practical choice for many heavy-duty applications with different budget and operating requirements.
The best choice depends on lifting frequency, workshop clearance, working class, investment budget and maintenance expectations.
Manufacturing Process
01. Steel Plate Processing
Steel plates are cut and processed according to engineering drawings to ensure dimensional accuracy.
02. Girder Fabrication
Main girders are assembled and welded using controlled manufacturing procedures.
03. Component Assembly
Hoisting trolleys, end carriages, motors, gearboxes and electrical components are installed.
04. Testing & Inspection
Mechanical, electrical and operational inspections are carried out before delivery.
Benefits
Best Quality
Fast Delivery
Global Service
Customer Site
We welcome global clients to our factory for inspections and business meetings. Direct visits allow customers to experience our manufacturing strength, quality control system, and professional service.
Packing and Shipping
We strictly manage packaging specifications and transportation requirements to ensure every crane and component is delivered safely.
Small parts and accessories are packed in wooden cases or wooden pallets for strong protection during transportation. Large steel structures are wrapped with plastic film or waterproof materials to prevent moisture, dust, and surface damage.
Electrical components receive additional anti-vibration and moisture-proof protection to ensure reliable performance after delivery.
With 20+ years of export experience, we provide efficient sea, land, and multimodal transportation solutions for global customers.
Customized packaging is available according to your specific requirements.
FAQ
A European double girder overhead crane is an industrial bridge crane featuring two main girders and a European-style hoisting trolley. It is designed for efficient material handling with compact structural configurations, optimized lifting mechanisms and precise operational control.
The main differences are in structural design, hoisting mechanism, equipment dimensions, control technology and maintenance arrangements. European-type cranes generally feature more compact configurations and more integrated mechanical systems, while conventional cranes offer a wider range of traditional configurations.
The lifting capacity depends on the crane model and project requirements. We can provide customized solutions according to the required load, span, lifting height and working class.
Please provide the following information:
Lifting capacity
Crane span
Lifting height
Workshop dimensions
Working frequency
Application and working environment
Our engineering team can evaluate your requirements and recommend a suitable crane configuration.
